• Module Size: 190 mm.
• Thickness Options: Available in 60 mm, 75 mm, 100 mm, 120 mm, and 150 mm thicknesses.
• Joining System: Stainless steel eccentric cam-lock with square key for secure assembly.
• Finish:
  • Galvanized steel sheet with white pre-lacquered finish.
  • Protective removable film for safe handling during installation.
  • Polyester paint lacquer (25 microns thickness) ensuring durability and food-safe quality.
  • Compliant with EN 10169 regulations.

Insulation:

• Material: Rigid polyurethane foam (without CFC or HCFC) providing excellent thermal insulation.
• Density: 40 kg/m³ (± 3 kg/m³).
• Thermal Performance (U-value):
  • Panel 60 mm: 0.38 W/m²°C
  • Panel 75 mm: 0.31 W/m²°C
  • Panel 100 mm: 0.23 W/m²°C
  • Panel 120 mm: 0.19 W/m²°C
  • Panel 150 mm: 0.15 W/m²°C

Floor and Roof Panels:

1. Floorless Room : This is a option to allow stright through access, Suitable on chiller rooms only excludes freezers.
2. Standard Floor:
   • Interior face made of anti-slip PVC sheet, 1 mm thick. Intended for pedestrian use only.
   • Load Capacity:
     • Static load: 2,000 kg/m² (even spread).
     • Dynamic load: Not suitable for trolleys
3. Reinforced Floor:
   • Suitable for both people and manual trolley transit.
   • Interior face made of anti-slip birch plywood with phenolic-resin coating.
   • Load Capacity:
     • Static load: 4,000 kg/m² (even spread).
     • Dynamic load: 400 kg with non-metallic 4-wheeled trolleys.
4. Reinforced Superimposed Floor (Optional):
   • Anti-slip galvanized steel (3/5 thickness) or anti-slip aluminum damero pattern (2/4 thickness).

Doors:

1. Huge range of sizes for doors ,  most popular being a hinged or sliding door
2. Doors:
   • Finish: Galvanized steel sheet, white lacquered with removable protection film.
   • Lacquer: Polyester paint (25 microns thickness) for durability and food safety.
   • Regulation Compliance: EN 10169 standard.
   • Bolts and Nuts: Stainless steel (AISI 304).
3. In Freezing Cold Rooms:
   • Door Frame Heating element powered by 220 volts.
4. Hinged Doors:
   • We offer a range of door sizes
   • Mounted directly onto the door panel for clear openings up to 940 mm.
   • Larger doors are mounted on a frame.
   • Hinges: Spiral inclination hinges for better alignment and movement.
5. Sliding Doors:
   • Sliding Guide Rail: Made of anodized aluminum.
   • Frame: Lacquered aluminum profiles with thermal bridge break, ensuring efficient thermal insulation.

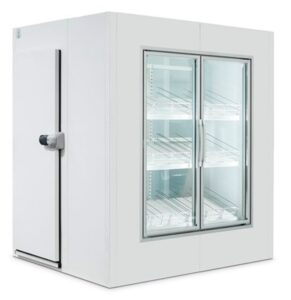

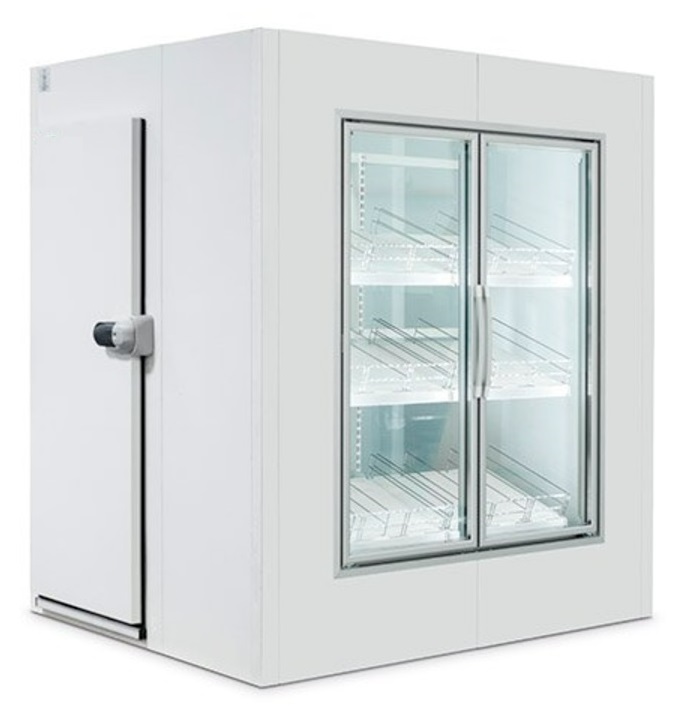

Advantages of our Modular Coldrooms:

• Multiple height options available
• Aesthetic design for clean, professional appearance.
• Easy assembly with a reliable stainless steel cam-lock joining system.
• Customization options through special orders (reinforced flooring, stainless steel finishes, etc.).

Our system is tailored for applications where insulation and durability are crucial, such as in food storage, cold storage rooms, or other temperature-sensitive environments. To arrange your quotation you can fill in this form for a quick quote Free Quote - Modular Coldrooms
