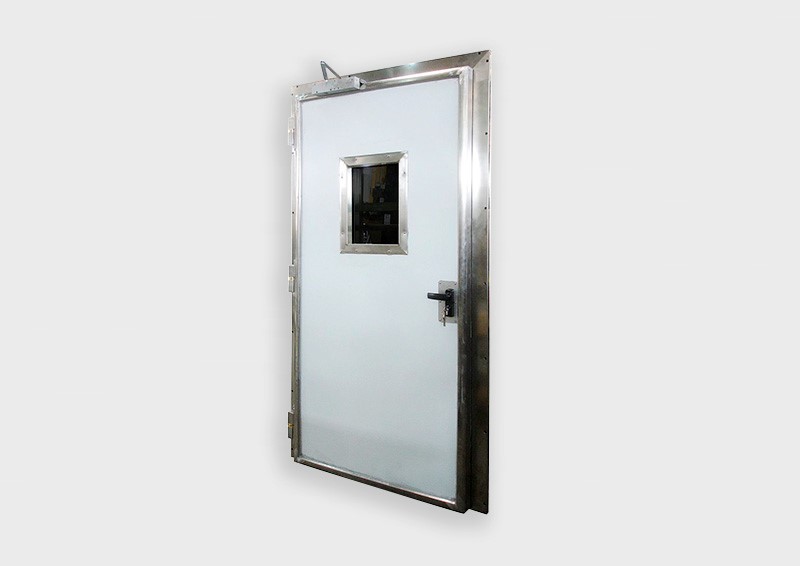

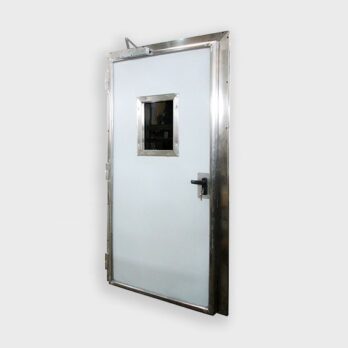

Fire-resistant refrigerated pivoting door, with a 60-minute rating

Fire-resistant refrigerated pivoting door, with a 60-minute rating, suitable for the food industry.

• Thickness: 120 mm

• Finishes:

  • Lacquered steel

  • PVC

  • Stainless steel

• Perimeter Fence: Stainless steel

• Core Composition:

  • Plasterboard

  • Rock wool

  • PIR (Polyisocyanurate) with a density of 40-45 kg/m³

• Perimeter Gasket: PVC, ensuring the seal is watertight

• Industrial Frame Characteristics:

  • Material: Stainless steel frame designed to hold panels or work.

  • Intumescent Joints: The frame is provided with intumescent joints, which expand in the event of a fire to seal gaps and enhance fire resistance.

  • Freezing Doors (-20ºC/-40ºC):

    • Heating Elements: Integrated heating elements around the entire perimeter of the frame and sill to prevent freezing.

    • 3-Point Locking System: For secure closure and safety.

    • Handles: Exterior handle available with or without a key; interior features a panic bar for emergency exit.

    • Hinges: Stainless steel hinges with bronze ramps to ensure smooth and durable operation.

    • Custom Design: Tailored designs available to meet specific needs.

  • Lead Time can depend on time of order , expecting lead time between 5-8 weeks
