Remote Split |Capacity 9.8-26.17 M3 | 230V

Remote Split System |Capacity 9.8-26.17 M3 | 230V

A remote split system for cold rooms is a commercial refrigeration setup where the refrigeration components are split into two separate units:

1. Evaporator Unit (Inside the Cold Room)

   • Installed inside the cold room to absorb heat and lower the temperature.
   • Includes a fan to circulate cold air evenly.

2. Condensing Unit (Installed Remotely)

   • Placed outside the cold room, often on a rooftop or exterior wall up to a max 5 meters
   • Includes the compressor, condenser, and expansion valve, responsible for releasing heat away from the cold room.

Benefits of a Remote Split System:

✅ Better Heat Management – Keeps heat and noise away from the cold room area.
✅ Reduced Noise Levels – Since the compressor is located outside, it keeps the cold room quieter.
✅ Energy Efficiency – More effective cooling compared to self-contained units.
✅ Longer Equipment Life – Reduces wear and tear due to improved ventilation and cooling.
✅ Customizable Installation – Suitable for both small and large cold rooms.

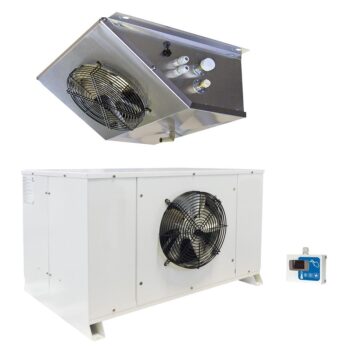

The Positive Split Unit 9.81-26.17 m³ is a refrigeration system designed for cooling spaces ranging from 9.81 m³ to 26.17 m³, making it suitable for small to medium-sized cold rooms. It uses the R 449 A refrigerant, which is an environmentally friendly cooling agent. The unit operates with an automatic defrost system, ensuring consistent performance with minimal maintenance. With a temperature range of 0°C to +5°C, this unit is ideal for storing perishable goods such as dairy, fruits, vegetables, and certain pharmaceuticals.

This refrigeration unit consists of a condenser and evaporator that are installed separately, allowing for efficient heat dissipation and better cooling performance. It runs on a 230V power supply and consumes 1.19 kW of electrical power, ensuring energy-efficient operation.

Technical Specifications:

• Cooling Capacity: 9.81 – 26.17 m³

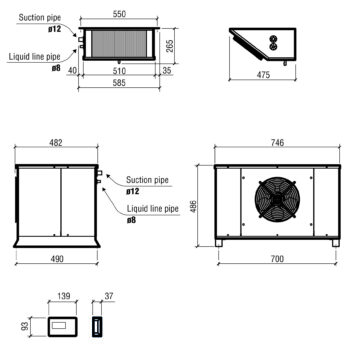

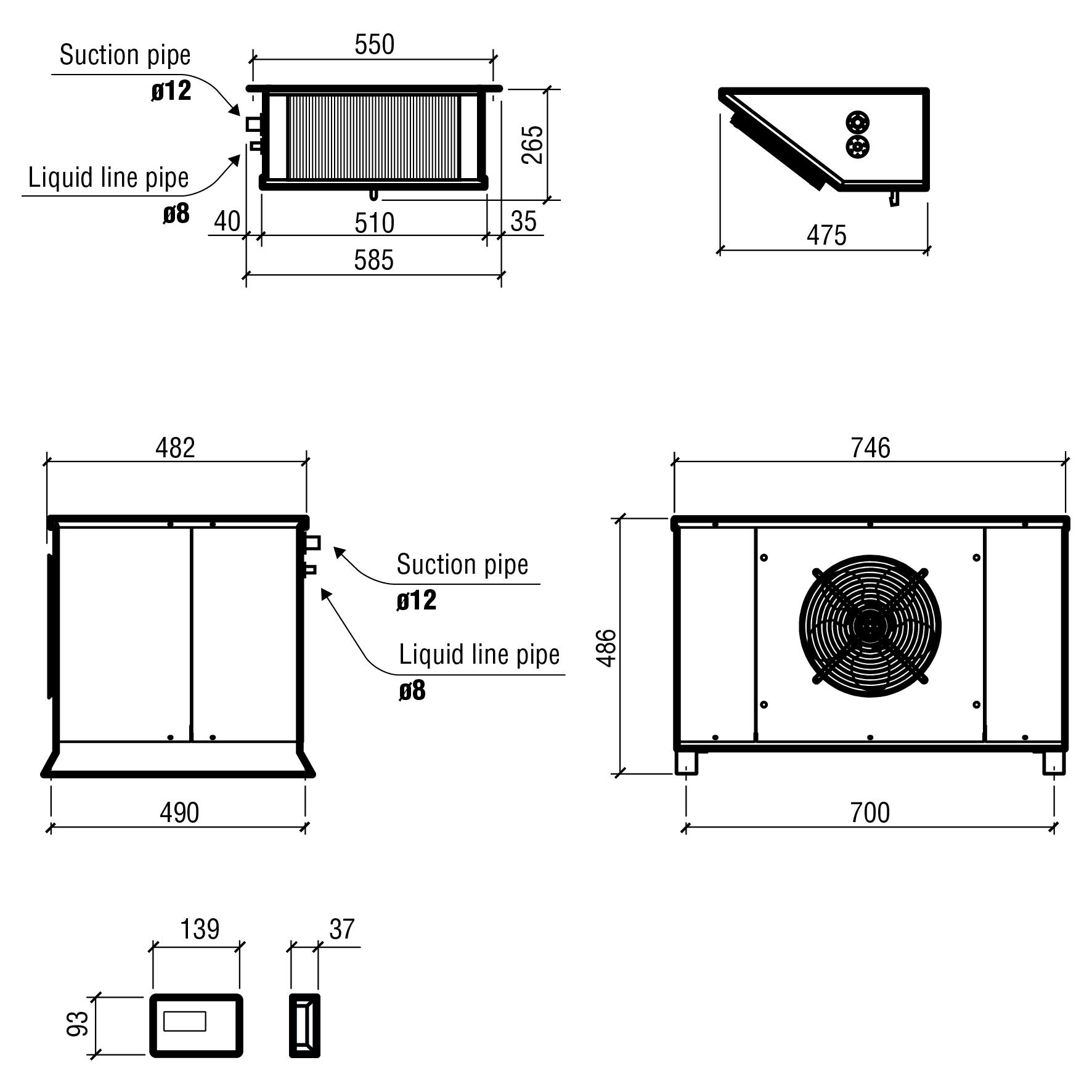

• Dimensions (Condenser Unit):
  • Width: 746 mm
  • Depth: 482 mm
  • Height: 486 mm
• Gross Weight: 53 kg
• Voltage: 230V
• Electrical Power Consumption: 1.19 kW
• Refrigerant Type: R 449 A
• Temperature Range: 0°C to +5°C
• Evaporator Dimensions (WxDxH): 585 x 475 x 265 mm
• Defrost System: Automatic
• Refrigerant Quantity: 700 g
• Italian Manufacturer

• 2 years part replacement warranty

• Delivery 4 to 5 working days
